Scalar Quantities

Visualize scalar-valued data at the nodes or cells of a sparse volume grid.

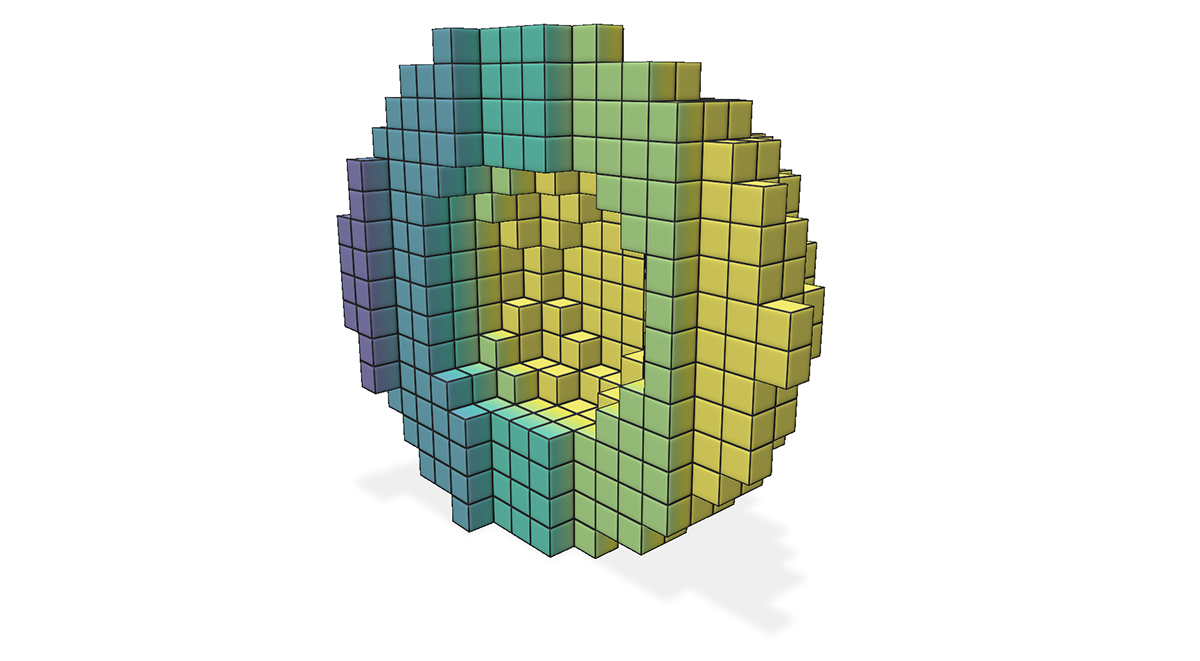

sparse volume grid scalar quantity

Example: adding scalar quantities to a sparse volume grid

#include "polyscope/polyscope.h"
#include "polyscope/sparse_volume_grid.h"

polyscope::init();

glm::vec3 origin{0., 0., 0.};
glm::vec3 cellWidth{0.1, 0.1, 0.1};

std::vector<glm::ivec3> occupiedCells = {
    {0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {1, 1, 0},
};

polyscope::SparseVolumeGrid* psGrid = polyscope::registerSparseVolumeGrid(
        "sample sparse grid", origin, cellWidth, occupiedCells);

// === Cell scalar: one value per occupied cell ===
std::vector<float> cellScalars = {0.1f, 0.5f, 0.9f, 0.3f};
psGrid->addCellScalarQuantity("cell scalar", cellScalars);

// === Node scalar: values at node indices ===
// For each cell (i,j,k), its corner nodes are (i+dx, j+dy, k+dz) for dx,dy,dz in {0,1}.
// Collect all unique nodes and provide a value for each.
std::vector<glm::ivec3> nodeIndices = { /* all unique corner nodes */ };
std::vector<float> nodeValues = { /* one value per node index */ };
psGrid->addNodeScalarQuantity("node scalar", nodeIndices, nodeValues);

polyscope::show();

Add cell scalars¶

SparseVolumeGridCellScalarQuantity* SparseVolumeGrid::addCellScalarQuantity(std::string name, const T& values, DataType type = DataType::STANDARD)

Add a scalar quantity defined at the cells of the grid.

name the name of the quantity
values a flat array of scalars, one per occupied cell in the same order as the occupiedCells array used at registration. The type should be adaptable to a float scalar array.
type the data type of the scalar (standard, symmetric, magnitude, etc.)

Add node scalars¶

SparseVolumeGridNodeScalarQuantity* SparseVolumeGrid::addNodeScalarQuantity(std::string name, const TI& nodeIndices, const TV& nodeValues, DataType type = DataType::STANDARD)

Add a scalar quantity defined at the nodes of the grid.

Node values are passed as paired arrays of node indices and values. For a cell with grid indices (i, j, k), its corner nodes have indices (i+dx, j+dy, k+dz) for dx, dy, dz in {0, 1}. The node indices may be passed in any order, and extra entries (for nodes not required by any occupied cell) are ignored. However, all required node values must be present.

name the name of the quantity
nodeIndices an array of glm::ivec3 node grid indices. The type should be adaptable to an array of glm::ivec3.
nodeValues a flat array of scalar values, one per entry in nodeIndices. The type should be adaptable to a float scalar array.
type the data type of the scalar (standard, symmetric, magnitude, etc.)

Categorical Scalars¶

Scalar quantities can also be used to visualize integer-valued labels such as categories, classes, segmentations, flags, etc.

Add the labels as a scalar quantity where the values just happen to be integers (each integer represents a particular class or label), and set DataType::CATEGORICAL. This will change the visualization to a different set of defaults, adjust some shading rules, and use a distinct color from the colormap for each label.

Color Bars¶

Each scalar quantity has an associated color map, which linearly maps scalar values to a spectrum of colors for visualization. See colormaps for a listing of the available maps, and use quantity->setColorMap("cmap_name") to choose the map.

The colormap is always displayed with an inline colorbar in the structures panel, which also gives a histogram of the scalar values in your quantity. The limits (vminmax) of the colormap range are given by the two numeric fields below the colored display. You can click and drag horizontally on these fields to adjust the map range, or ctrl-click (cmd-click) to enter arbitrary custom values.

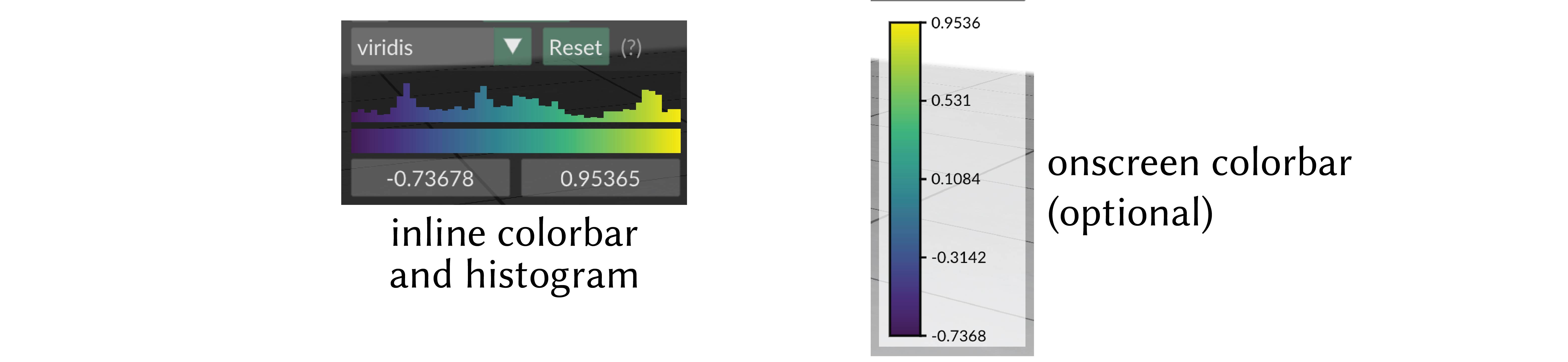

image inline and onscreen colorbar

onscreen colorbar

Optionally an additional onscreen colorbar, which is more similar to the colorbars used in other plotting libraries, can be enabled with quantity->setOnscreenColorbarEnabled(true).

By default it is positioned automatically inline with the other UI elements, or it can be manually positioned with quantity->setOnscreenColorbarLocation(glm::vec2(xpos,ypos)).

You can even export this color map to an .svg file for creating figures, via the options menu, or with quantity->exportColorbarToSVG("filename.svg").

Scalar Quantity Options¶

These options and behaviors are available for all types of scalar quantities on any structure.

Parameter	Meaning	Getter	Setter	Persistent?
enabled	is the quantity enabled?	`bool isEnabled()`	`setEnabled(bool newVal)`	yes
color map	the color map to use	`std::string getColorMap()`	`setColorMap(std::string newMap)`	yes
onscreen colorbar	additional onscreen colorbar	`bool getOnscreenColorbarEnabled()`	`setOnscreenColorbarEnabled(bool newVal)`	yes
onscreen colorbar location	where to put onscreen colorbar, `(-1,-1)` (default) means auto	`glm::vec2 getOnscreenColorbarLocation()`	`setOnscreenColorbarLocation(glm::vec2 newVal)`	yes
save colorbar to `.svg` file	export colorbar to file	`void exportColorbarToSVG(std::string filename)`	-	-
map range	the lower and upper limits used when mapping the data in to the color map	`std::pair<double,double> getMapRange()`	`setMapRange(std::pair<double,double>)` and `resetMapRange()`	no
isolines enabled	are isolines shaded (default=`false`)	`bool getIsolinesEnabled()`	`setIsolinesEnabled(bool newVal)`	yes
isoline style	stripes or thin contour lines	`IsolineStyle getIsolineStyle()`	`setIsolineStyle(IsolineStyle newVal)`	yes
isoline period	period of isoline stripes, in data units	`float getIsolinePeriod()`	`setIsolinePeriod(float newVal)`	yes
isoline darkness	darkness of isoline stripes (default=`0.7`)	`float getIsolineDarkness()`	`setIsolineDarkness(float newVal)`	yes
contour thickness	thickness of isoline contour lines (default=`0.3`)	`float getIsolineContourThickness()`	`setIsolineContourThickness(float newVal)`	yes
